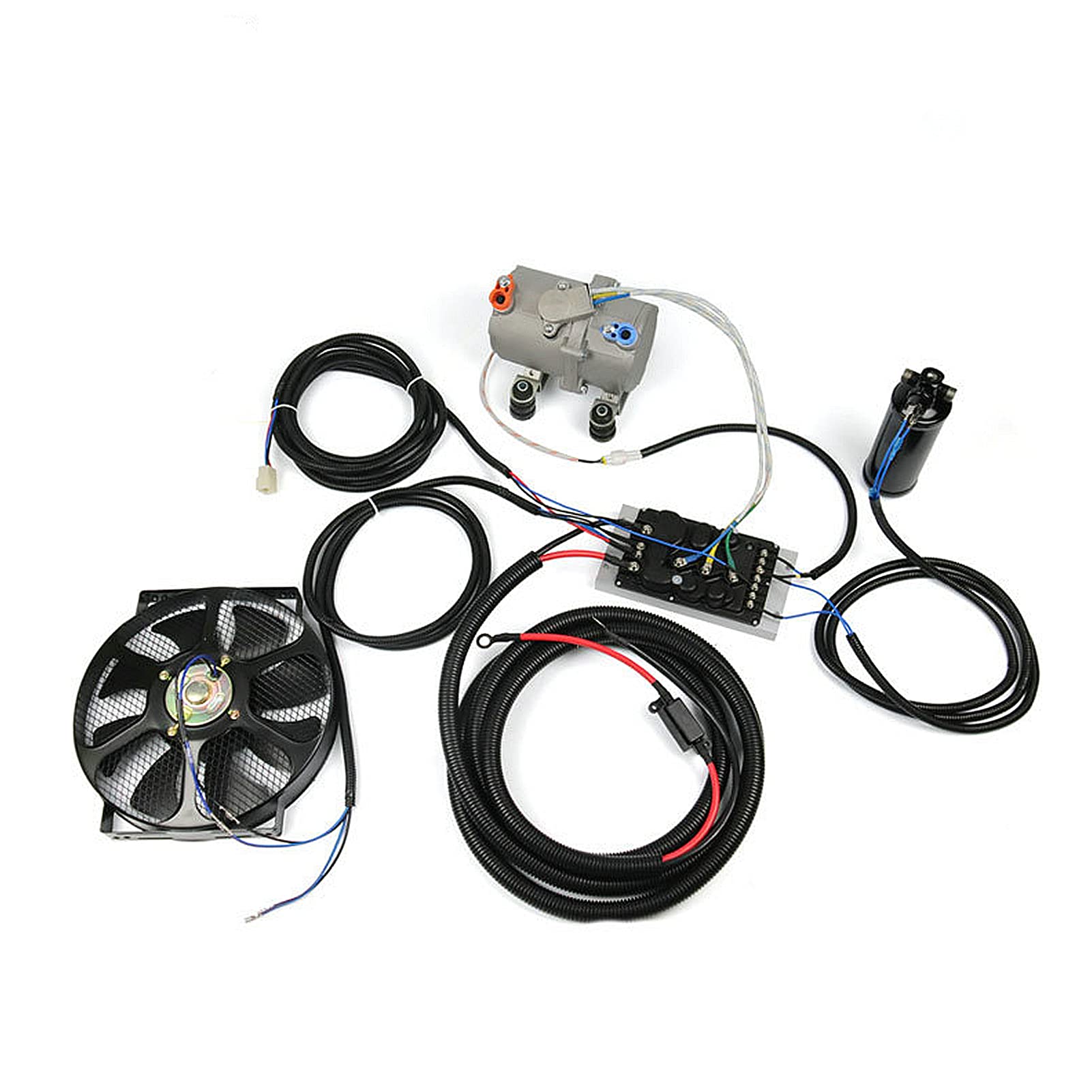

12V 24V Electric AC Compressor for New Energy Vehicles - Fuel-Free Car Air Conditioning System | Perfect for EV Conversions, Hybrid Cars & Off-Grid Cooling Solutions

Pay attention： 1. PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't takeresponsibility for you if you damage the compressor. 2. Remember ! Please screw tightly of the controller board. Otherwise the board will get burnt. Refrigerant (Gas): R134a Speed range: 1000～2300 rpm / 1000～3300 rpm Suction pressure: 0.2～0.45Mpa Discharge pressure: ≤2.0Mpa / ≤2.2Mpa pressure ratio: ≤10 Ambient temperature: -40℃ - 80℃ Discharge temperature: ≤110℃ Lubricating oil require: 8%-10% of whole system refrigerant (Gas) Material: Aluminum alloy Voltage: DC 12V / 24V Working voltage range: 10.5VDC～15VDC / 19.5VDC～32VDC Current: 45A+-2 / 35A+-2 Displacement: 21cm³/r Cooling capacity: 1.688KW / 2.465KW (5731BTU / 8410BTU) Speed range: 1000 - 2300rpm / 1000 - 3000rpm Rated power: 550W / 850w Rated speed: 1800rpm / 3000rpm Oil: POE / 130ml - 150ml Gas/Refrigerant: R134a Condensing temperature range: 26.7～68℃ Evaporating temperature range: -10～12.5℃ Noise level： 12V: Speed: 1500rpm / 2300rpm Noise: ≤70dB(A) / ≤74dB(A) 24V: Speed: 2000-3000rpm / 3000-4000rpm Noise: ≤76dB(A) / ≤78dB(A) Compressor body not to be tilted (the angle between the main axis of the compressor and the horizon should not be greater than 5 °) Brushless direct current controller 1. Over / Under voltage protection: DC 12V -- ( 21V / 10.5V ) DC 24V -- ( 42V / 20.5V ) 2. Max power: 600w / 1200W Generator (battery) request： 12V compressor require generator ampere over 100a; 24V compressor require generator ampere over 70A. About vehicle battery. If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough. For example, 12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour.

Refrigerant (Gas): R134a

Speed range: 1000～2300 rpm / 1000～3300 rpm

Voltage: DC 12V / 24V(Working voltage range: 10.5VDC～15VDC / 19.5VDC～32VDC)

PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't take responsibility for you if you damage the compressor.

Rated power: 550W / 850W

fit_type Universal

part_number 785387340917
