01 02 015 Electric Bike Controller Display - Clear Data LCD Screen for E-Bike Conversion Kits | High Heat Dissipation & Durability | Perfect for DIY E-Bike Upgrades & Commuting

Specification:Item Type: Electric Controller S800 Instrument KitColor: As Pictures ShownMaterial: Aluminum Alloy + ABS PlasticWeight: Approx.584g/20.6ozController Box Size: Approx. 111x53x33mm/4.4x2.1x1.3in, Meter Size: Approx. 80x48mm/3.2x1.9inController Rated Voltage: DC 36V/48VController Maximum Current: 22AController Speed Setting: 1-4.2VController Brake Input: Low LevelBooster: 1:5Applicable Motor Power: 500WController Wire Color Definition:1. Yellow, Green, Blue Single Big Head Line: Motor Phase Line2. Red-white-black-blue-green-yellow Double Row Six-wire Port: Motor Hall Wire3. Red and Black Single Big Head Line: Power Line4. Red, Blue, Black, Green and Yellow Single-row Five-wire Port: Instrument Line (5pin)5. Black and Yellow Lines (two): Power off Brake Handle Line6. Red and Black White Lines: Throttle Dial Line (3pin)7. Brown, Black and Yellow Wire: Power Sensor Wire (3pin)8. Black and Red Lines (two): Headlight LinesLCD S866 Meter Working Voltage: DC 24V, 36V, 48V, 60V Compatible (meter Selection Setting).LCD S866 Meter Meter Function Description:1. Display Function: Speed Display, Battery Indicator, Fault Indicator, Total Mileage, Single Mileage.2. Control Setting Functions: Power Switch Control, Wheel Diameter Setting, Idle Speed Automatic Sleep Time Setting, Backlight Brightness Setting, Startup Mode Setting, Drive Mode Setting, Voltage Level Setting, Controller Limit Value Setting.3. Communication Protocol: UARTDisplay All the Contents of the Screen (full Display for 1S After Booting)3.1 Display of Battery Power and Remaining Power of BMS.3.2 Multifunction Display Area: Total Mileage Odo, Single Mileage Trip (unit: Mile, Km), Single Boot Time Time, Battery Voltage VOL, DST: Battery Life.3.3 Speed display AreaAVG: Average Speed, : Maximum Speed, Speed: Current Speed: Unit Mp/h Km/h.The Speed Signal is Taken from the

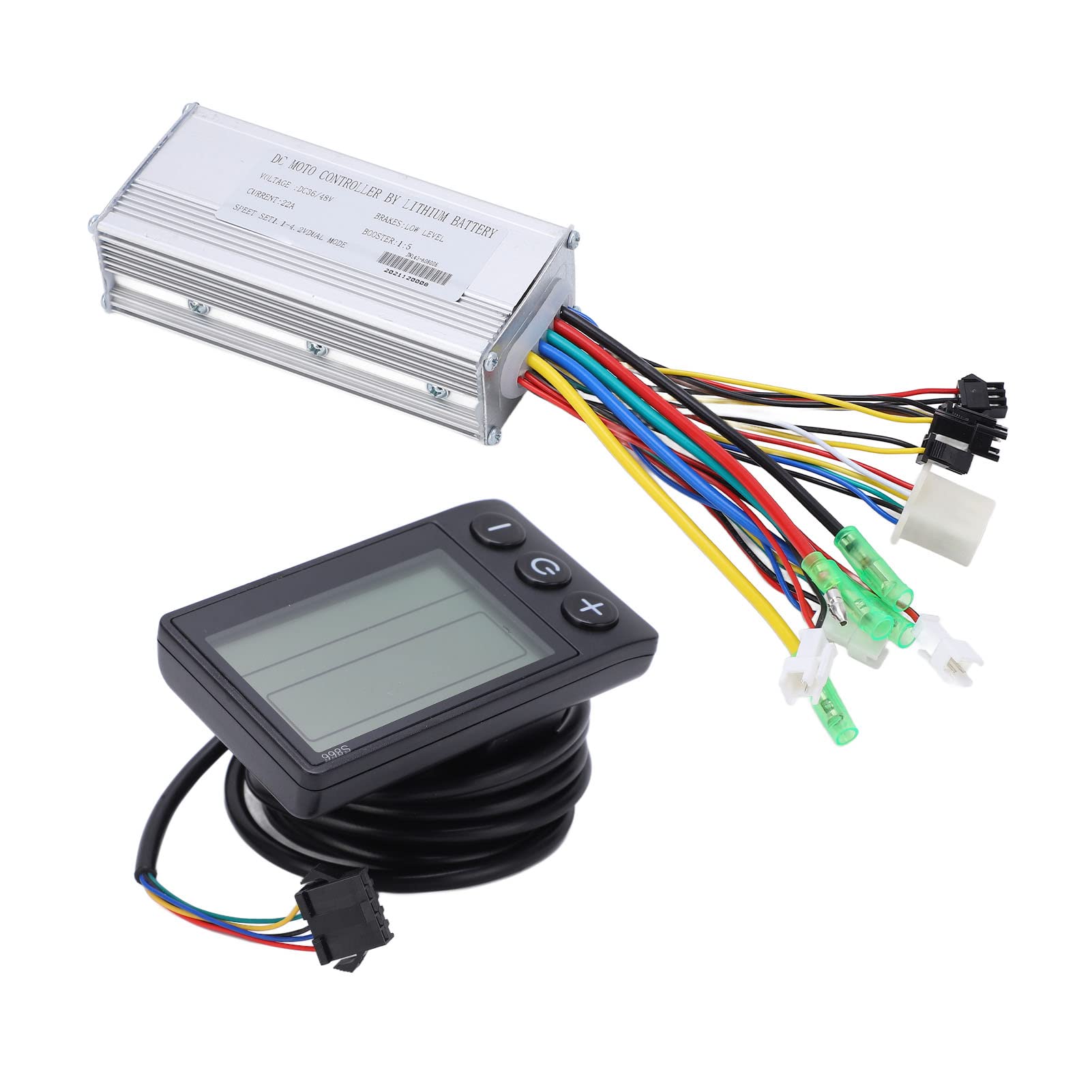

Packing List: Electric bike conversion kit include 22A controller, LCD S866 instrument, 130X thumb throttle, 8C speed assist sensor.

Controller Housing: Made of high quality metal with design, it can the internal circuit due to good heat dissipation, thus avoiding thermal overload.

Scope of Application: Suitable for 500W motor, DIY electric , electric vehicle, electric scooter, folding bike, etc. Easy to maintain, electric greatly improves riding fun, for cyclists who like challenge.

Durable Material: Using ABS material, it is light, strong and durable, with good toughness and waterproof performance, providing better protection for the internal circuit.

LCD Backlight Display: LCD S866 display meter has a variety of functions, which can clearly display the status and data. When riding , it will display many useful data on your , such as battery display, speed display, battery indicator, faul
